Reaction - Laboratory

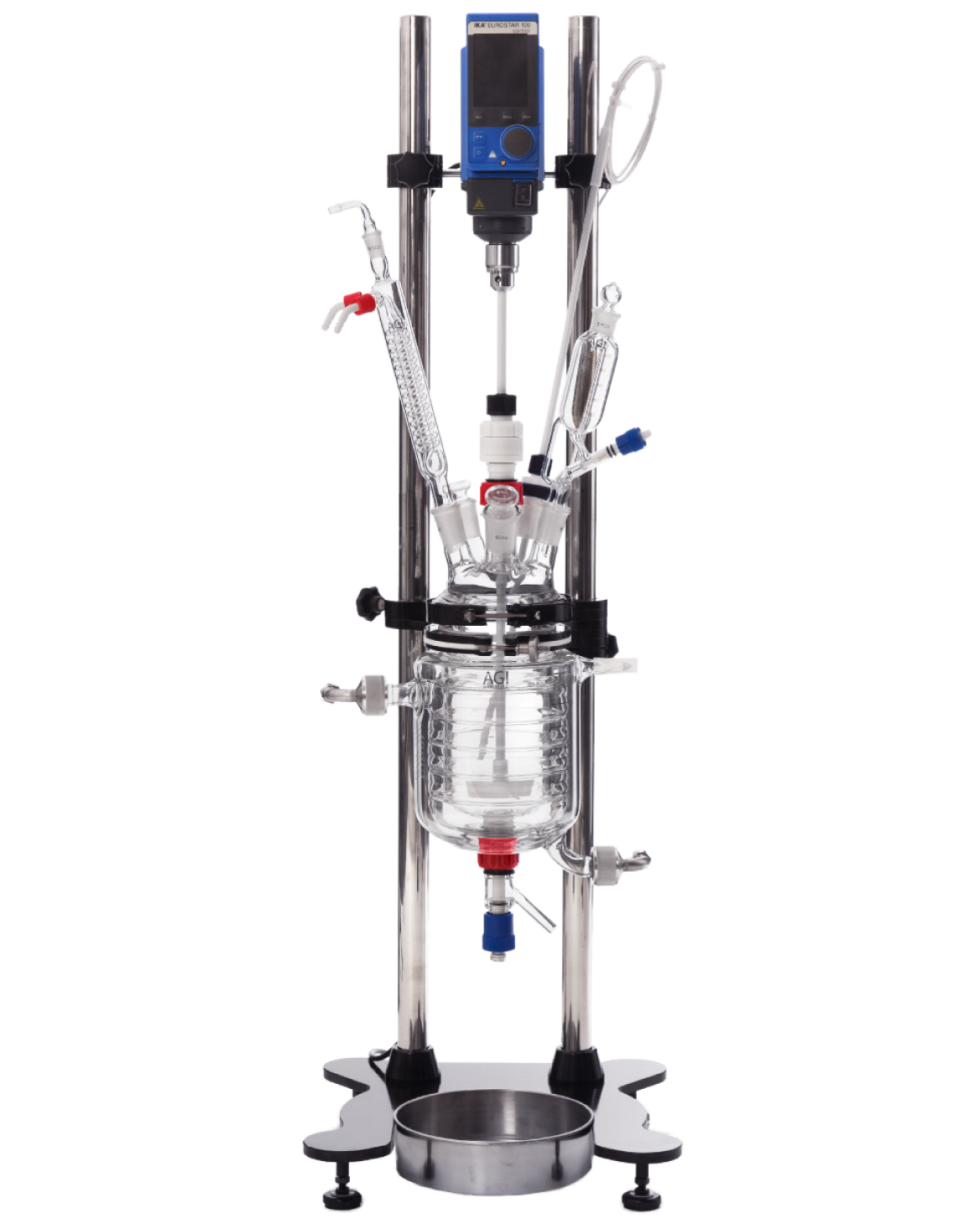

Blue Label Reaction Unit

실험용 유리반응기


Best-in-class benchtop jacketed glass reactor


세계최고 유리 가공능력을 보유하고 있는 AG!사의 실험용 유리반응기로 300ml~5L 용량을 제공하며 이중관, 삼중관 두 가지 타입 중 선택이 가능합니다.


Fast achievement of reaction set-point temperature

Reduced energy consumption

Interchangeable vessels (300 ml to 5 L)

The Benchtop Reactor is a Blue Label Product >

General specifications



 Vessel capacity300 mL, 500 mL, 1 L, 2 L, 3 L and 5 L
 Vessel typeDouble wall or triple wall. Ring Baffles available for both types
 Operating pressureFull vacuum to atmospheric pressure
 Operating jacket pressureUp to +0.5 barG (0.05 MPa)
 Operating temperature-90 °C to +230 °C
  ΔT - Thermal shock resistance110 °C (double wall), 60 °C (triple wall)


* 사용자의 요청에 따라 원하는 디자인으로 변경 가능




Why Should you choose AGI Benchtop Reactor?

AGI Benchtop Reactor is designed by experts to provide users with a best-in-class jacketed reactor product. We have extensive experience in scientific glass fabrication and in providing solutions for a wide variety of chemical processing industries.
We integrated our knowledge into a system that offers the following advantages:

Wide process temperature range

Wide process temperature range:
-90 °C to +230 °C

Ring Baffle Icon

Thermal jacket with Ring Baffle for excellent temperature control

High thermal shock value

High ΔT - Thermal shock resistance
110°C (Double wall), 60°C (Triple wall)

Removable drain valve for easy cleaning

Removable flush valve for easy cleaning

Interchangeable vessels

One support structure for vessels from
300 mL to 5 L

Interchangeable vessels and accessories

Interchangeable vessels and accessories








Features

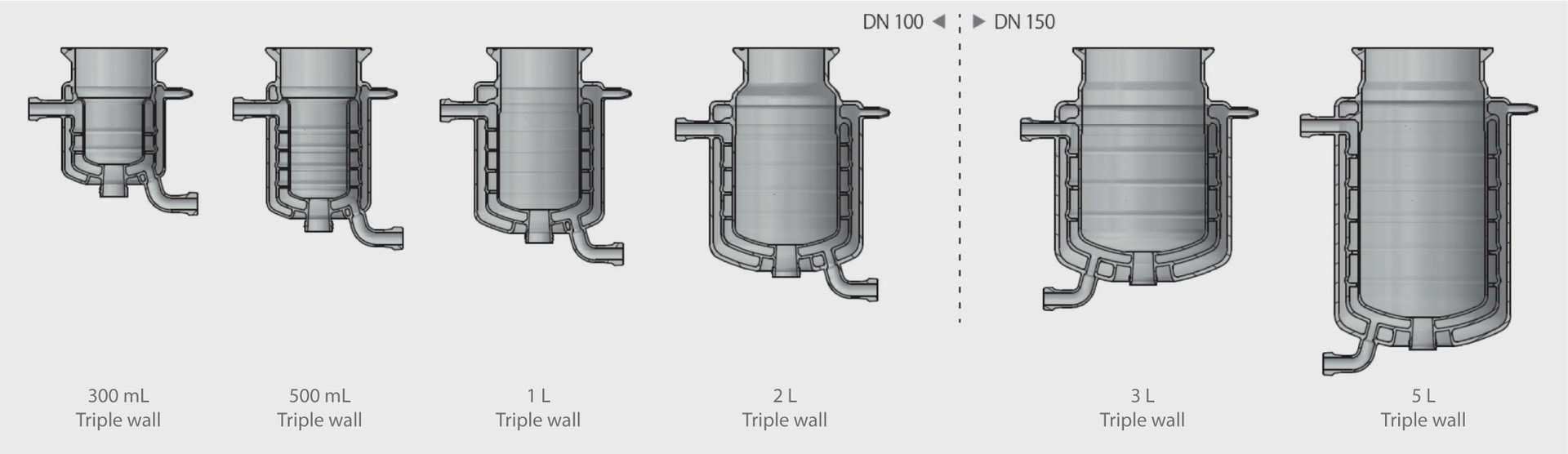

#1 Interchangeable reaction vessels


Reactor vessel 커버 사이즈는 모두 동일합니다.




실험용 반응기(Laboratory Reactor)의 경우 Vessel의 커버 사이즈가 300ml, 500ml, 1L, 2L는 DN100 size,

3L, 5L는 DN150 사이즈로 각각의 동일 커버 사이즈 내에서는 Vessel의 교체만으로도 Structure 및 Upper part의 공유가 가능하도록 설계되었습니다.

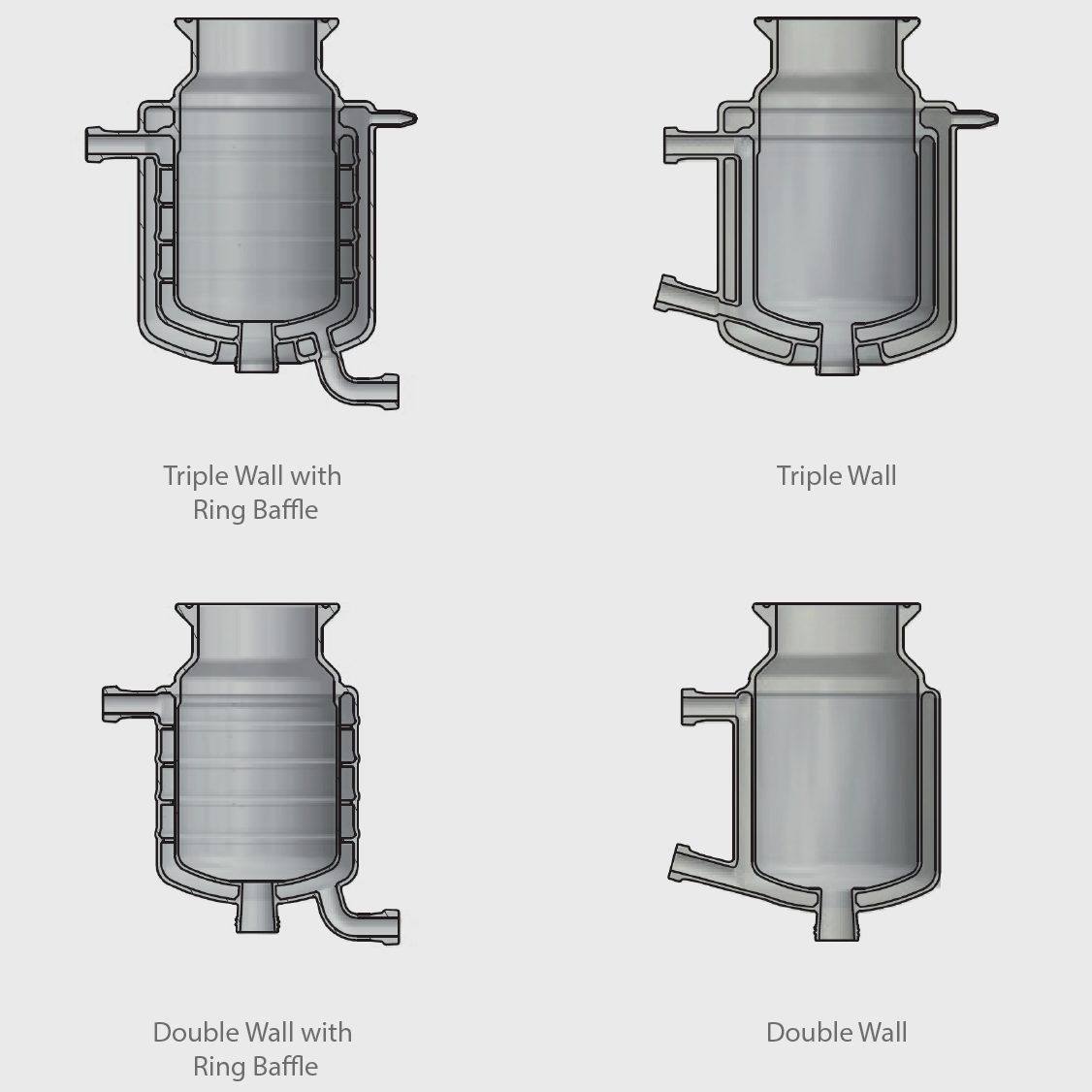

#2 네가지 타입의 Reactor vessel (선택 가능)

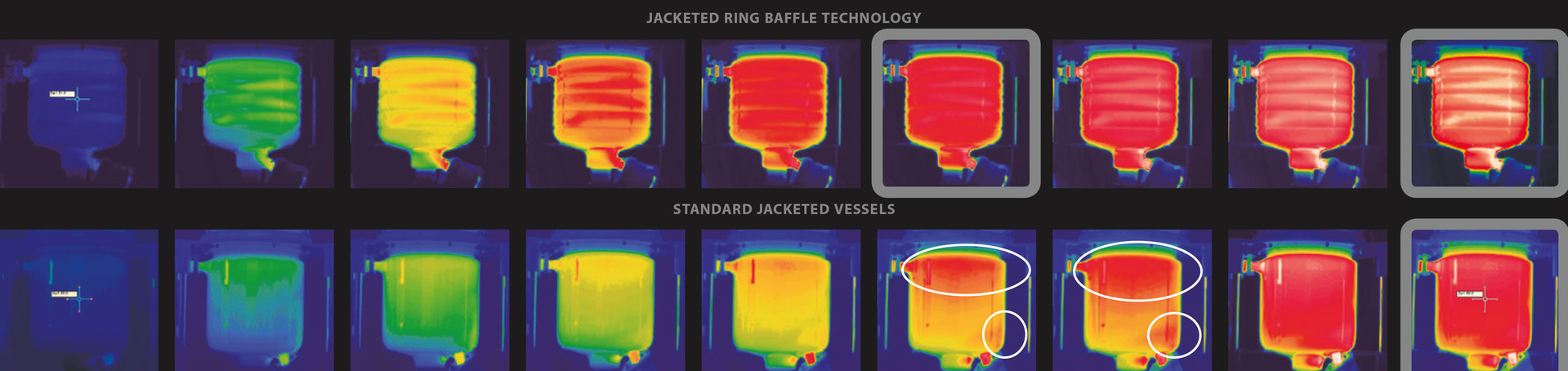

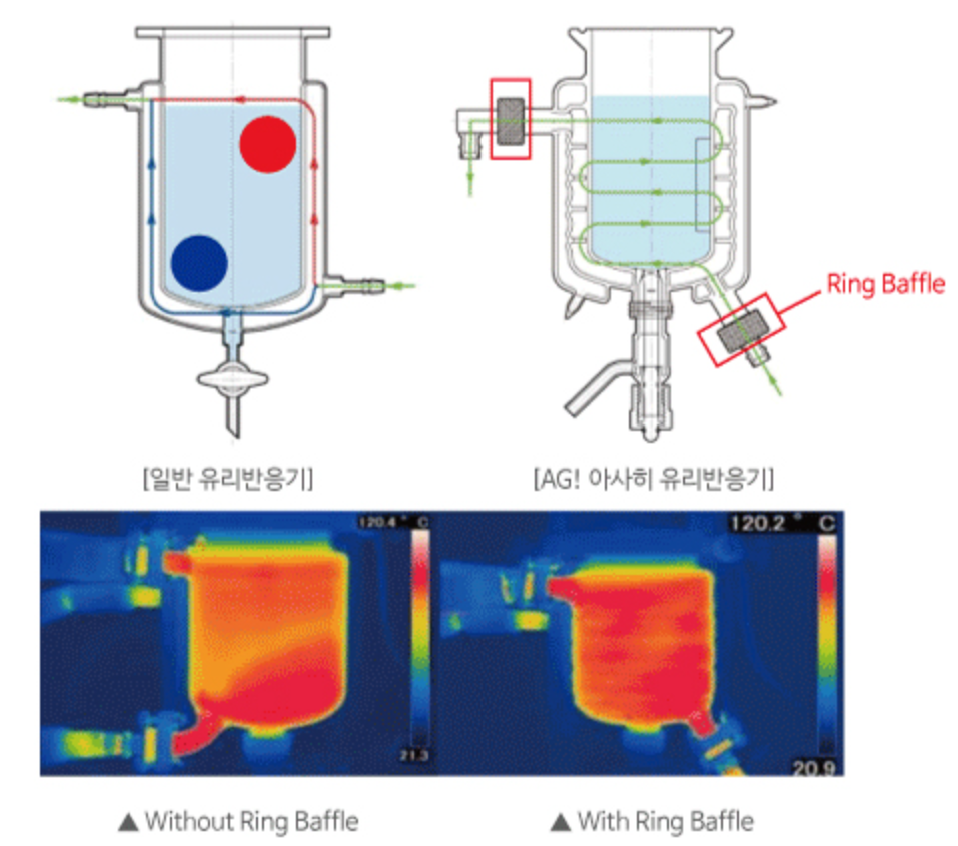

#3 빠르고 정확한 온도 조절이 가능한 ‘Ring Baffle’


* 상기 비디오는 검은색 염료의 흐름 패턴을 보여줍니다. 링배플은 링배플이 없는 용기에 비해 염료를 보다 고르게 분포시킵니다.

Functionality


Reaction–vacuum to atmospheric pressure

Temperature monitoring

Regulation of temperature

Agitation

Additional functionality -

see our customization section

Dosing liquids

Reflux condensation
