Reaction - Pilot Plant

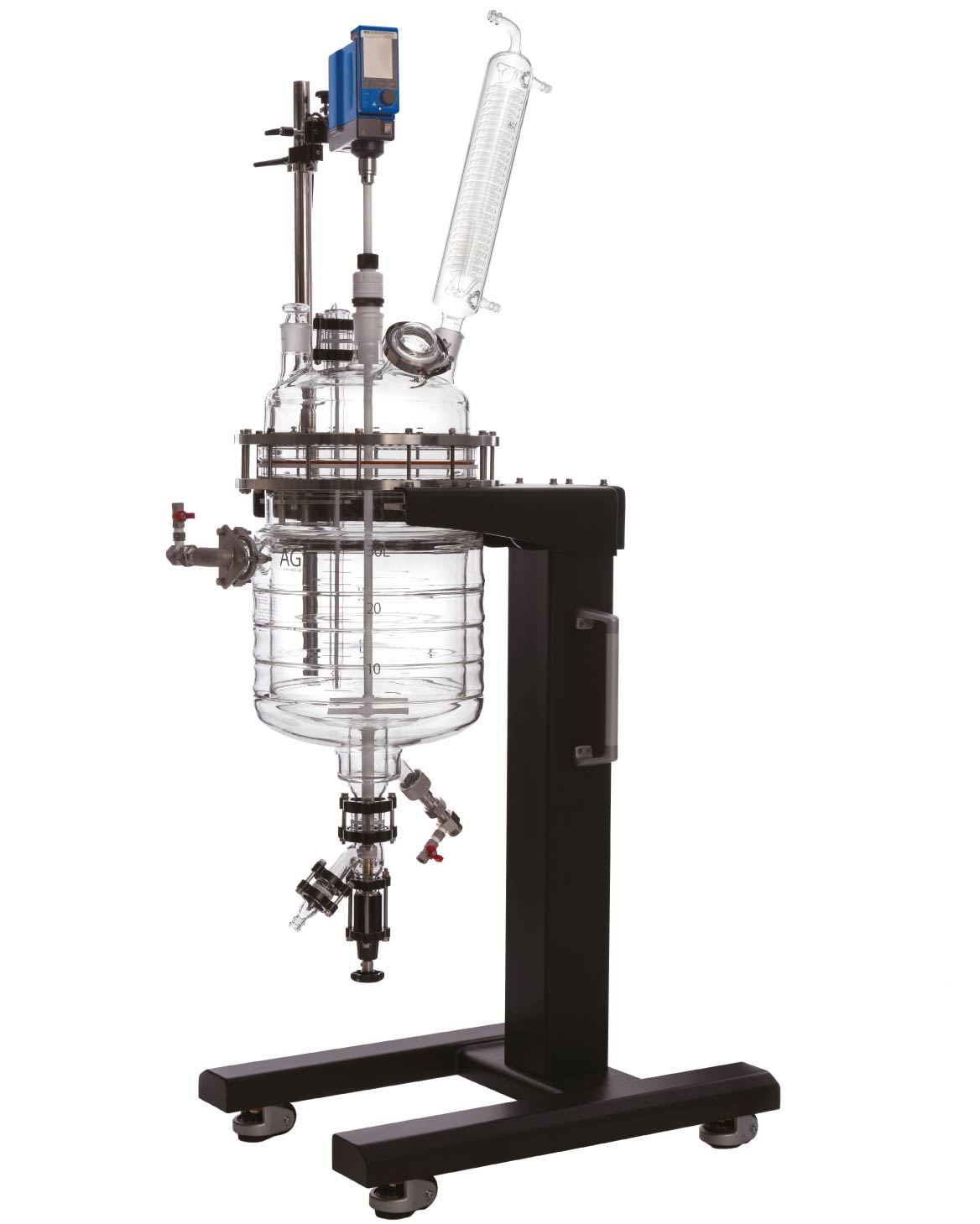

Blue Label Reaction Unit : Pilot Plant

파일럿 플랜트 유리반응기


Robust and reliable performance


Pilot Plant 유리반응기의 용랑은 10L~100L 로 이중관, 삼중관 두 가지 타입 중 선택이 가능합니다.


 Efficient thermal exchange

 Excellent agitation and easy scale-up
 Vess
el geometry ratios providing easy scalability



The Pilot Plant Reactor is a Blue Label Product >

General specifications

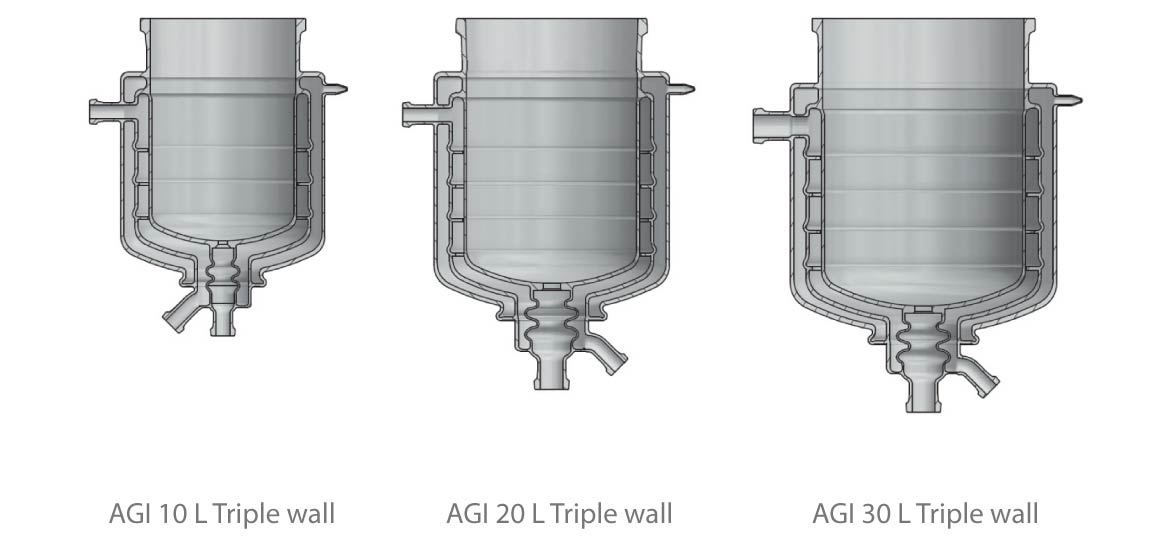

 Vessel capacity10 L, 20 L and 30 L
 Vessel typeDouble wall or triple wall*. Ring Baffles available for both types
 Operating pressureFull vacuum to atmospheric pressure
 Operating jacket pressureUp to +0.5 barG (0.05 MPa)
 Operating temperature-90 °C to +230 °C
  ΔT - Thermal shock resistance110 °C (double wall), 60 °C (triple wall)
* 사용자의 요청에 따라 원하는 디자인으로 변경 가능








Why should you choose AGI Pilot Plant Reactor?

AGI Pilot Plant Reactor is designed by experts to provide users with a robust and reliable performance. We have extensive experience in scientific glass fabrication and we provide solutions for a wide variety of chemical processing industries.

We integrated our knowledge into a system for small batch production that offers the following advantages:




Wide process temperature range

Wide process temperature range;
-90 °C to +230 °C

Ring Baffle Icon

Thermal jacket with Ring Baffle for excellent temperature control

High thermal shock value

High ΔT - Thermal shock resistance
110°C (Double wall), 60°C (Triple wall)



Easy-to-use Icon

East to set up and run
routine reaction processes

Removable drain valve for easy cleaning

Removable flush valve for
easy cleaning

Easy movability

Sturdy stand with castors
for mobility






Features

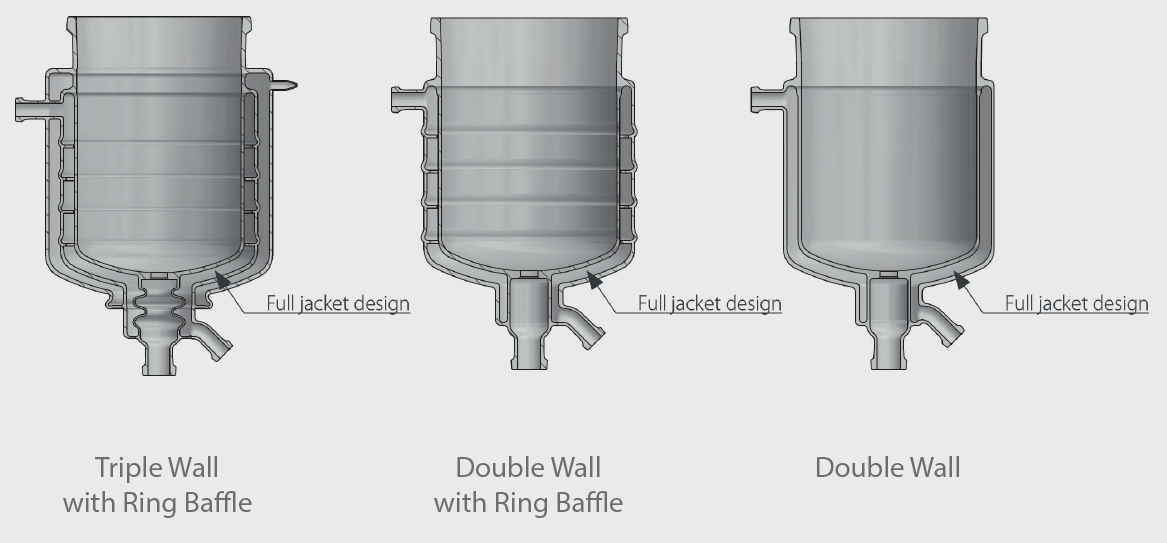

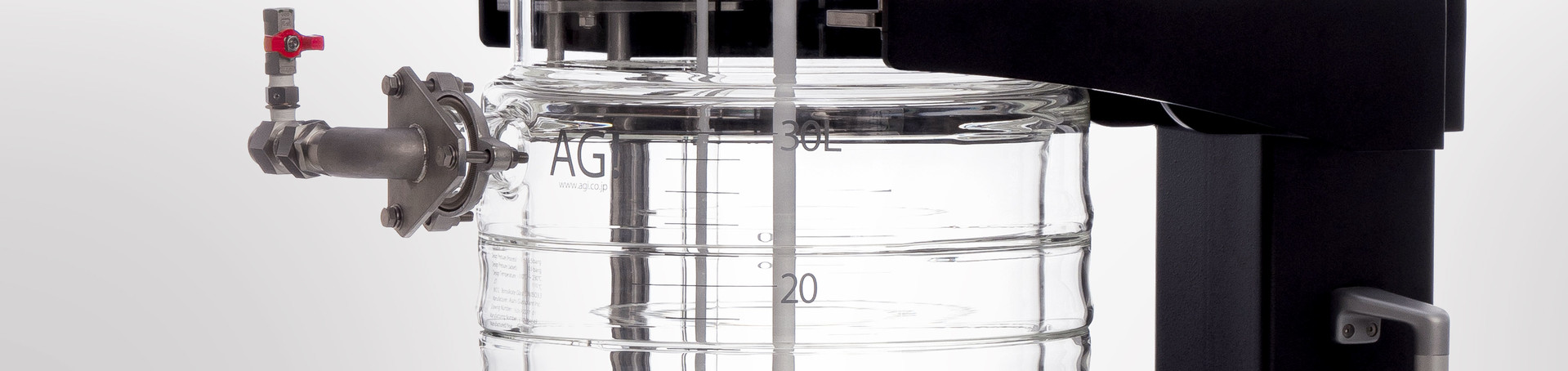

Full jacket, high performance vessels



Vessel은 반응 시스템의 핵심 구성 요소이다. AGI 유리 용기(glass vessel)는 이중관(thermal) 재킷 또는 삼중관(thermal and vaccum) 재킷으로 제공됩니다. 두 종류 모두 링 배플과 함께 또는 링 배플 없이 사용할 수 있습니다. AGI에서 만든 모든 vessel은 최대 작업 볼륨까지 열재킷이 있습니다.


 Optimized for excellent heat transfer

 Complete jacket cover

 High thermal shock resistance


Made with scale-up in mind



AGI의 reaction vessel은 스케일업을 염두에 두고 설계되었습니다. 우리의 3중관 용기는 산업용 유리 반응기 라인의 geometry와 매우 유사합니다.


 Flow dynamics similar to industrial reactors

 Meaningful extrapolation of process parameters for scale-up




AGI Triple WallCompetitors
Aspect ratio
ID (W) : Height (H)
1:1 ~ 1:1.51:1 ~ 1:2.5
Bottom ShapeSimilar to that of conventional glass lined reactors (10% head plate)Round Bottom






빠르고 정확한 온도 조절이 가능한 ‘Ring Baffle’


* 상기 비디오는 검은색 염료의 흐름 패턴을 보여줍니다. 링배플이 장착된 용기는 링배플이 없는 용기에 비해 염료를 보다 고르게 분포시킵니다.

Functionality


Reaction–vacuum to atmospheric pressure

Temperature monitoring

Regulation of temperature

Agitation

Additional functionality -

see our customization section

Dosing solids and liquids

Reflux condensation
