Reaction - Pilot Plant





Blue Label Reaction Unit : Pilot Plant

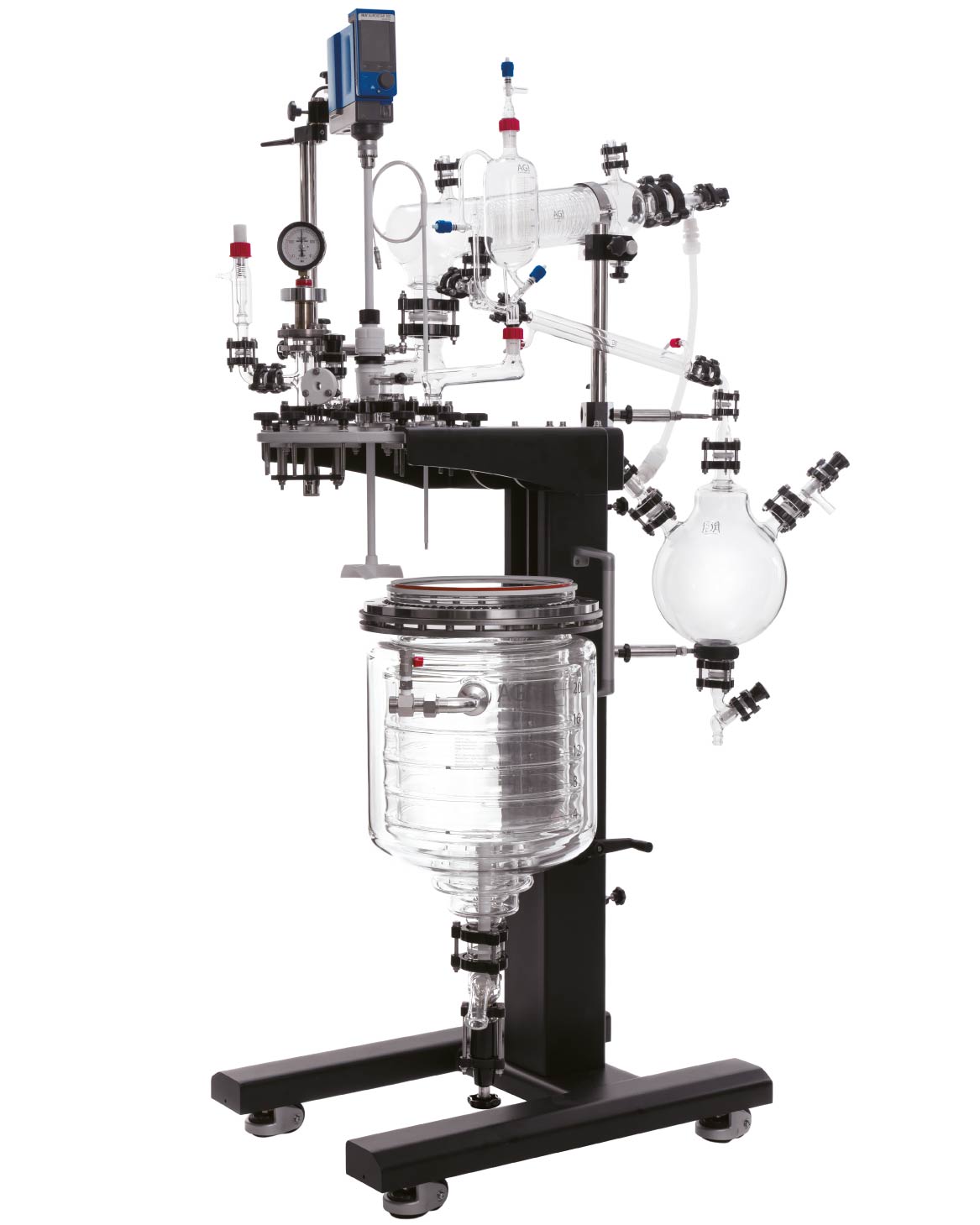

파일럿 플랜트 PLUS 유리반응기 (Fully Functional Stand)


Robust and reliable performance


Pilot Plant PLUS (이동식) 유리 반응기는 10L, 20L, 30L 반응기가 있으며, hand life 타입으로 높이 조절이 가능합니다. 이중관 , 삼중관 두 가지 타입 중 선택이 가능합니다.


 High performance via Ring Baffle technology

 Wide range of custom options
 Simple and efficient handling



The Pilot Plant Reactor PLUS is a Blue Label Product >



General specifications




 Vessel capacity10 L, 20 L and 30 L
 Vessel typeDouble wall or triple wall*. Ring Baffles available for both types
 Operating pressureFull vacuum to atmospheric pressure
 Operating jacket pressureUp to +0.5 barG (0.05 MPa)
 Operating temperature-90 °C to +230 °C
ΔT - Thermal shock resistance110 °C (double wall), 60 °C (triple wall)


Note:
*Triple wall vessel without ring baffle is not available as standard for volumes 10 L, 20 L and 30 L
Overhead stirrer, circulator and chiller are not included
Wetted parts: Borosilicate glass 3.3, PTFE and FFKM









Why should you choose AGI Pilot Plant Reactor?

AGI Pilot Plant Reactor  is designed by experts to provide users with excellent performance and functionality. We have extensive experience in scientific glass fabrication and in providing solutions for a wide variety of chemical processing industries.

We integrated our knowledge into a system for batch production applications that offers the following advantages:


AGI Quick changes Icon

Functional stand for quick vessel access, impeller change and cleaning

Process Development Icon

Various lid accessories for process development

Easy-to-use Icon

Easy to set up - more time for reaction process




Wide process temperature range

Wide process temperature range;
-90 °C to +230 °C

Ring Baffle Icon

Thermal jacket with Ring Baffle for excellent temperature control

Full Jacketed Vessel Icon

Full jacket vessel design for maximum performance




High thermal shock value

High ΔT - Thermal shock resistance
110°C (Double wall), 60°C (Triple wall)

Removable drain valve for easy cleaning

Removable flush valve for
easy cleaning

Easy movability

Sturdy stand with castors
for mobility





Functionality


Reaction–vacuum to atmospheric pressure

In-stand distillate cooling and collection

Temperature regulation - via thermal jacket

Reflux condensation and distillation

Inert atmospheric reactions

Temperature monitoring - via Pt100 thermal probe

Easy vessel access for impeller change

Dosing of solids and liquids

Pressure monitoring and relief

Debris free agitation via AGI stirrer seal
