Reaction - Pressure Reactor

Pressure Reactor

내압 반응기

Pressure, performance, and safety

AG!사의 내압 반응기는 All-Glass 용기 설계에서 최대 10 barG의 압력을 견딜 수 있습니다. 모든 유리반응기는 안전을 위해 압력 테스트을 거쳐지며 보호 덮개가 장착되어 있습니다. Flush 밸브에는 독특한 탈착식 glass shaft가 있어 세척이 용이하며, 반응기 덮개에는 8개의 포트가 있어 다양한 부속품을 연결할 수 있습니다. 자석교반기의 씰은 압력 누출로부터 보호되며 내식성이 뛰어난 SS316으로 제작됩니다. (Option : Hastelloy®로 제작 가능)

The Pressure Reactor is a Gold Label Product >

General specifications

 Vessel capacity500 mL, 1 L and 1.5 L
 Vessel typeDouble wall DN80
 Operating pressureFull vacuum to +10 barG (1 MPa)
 Operating jacket pressureUp to +0.5 barG (0.05 MPa)
Operating temperature-90 °C to +200 °C
ΔT - Thermal shock resistance60 °C (double wall)

Overhead stirrer, circulator and chiller are not included
Support structure: Metal structure with transparent window
Flush valve shaft: PTFE or PEEK or Glass
Impeller: SS316
Wetted Parts: Borosilicate glass 3.3, PTFE, SS316 (Optionally Hastelloy®) and FFKM
Customisations are possible on request

Why should you choose AGI Pressure Reactor?

AGI Pressure Reactor is designed by experts to provide users with excellent pressure control, performance, and safety. We have extensive experience in scientific glass fabrication and in providing solutions for a wide variety of chemical processing industries.

We integrated our knowledge into a system that offers the following advantages:

Pressure Icon

Up to 10 barG pressure

Easy to Remove Icon

Flush valve with removable glass shaft

Safety Icon

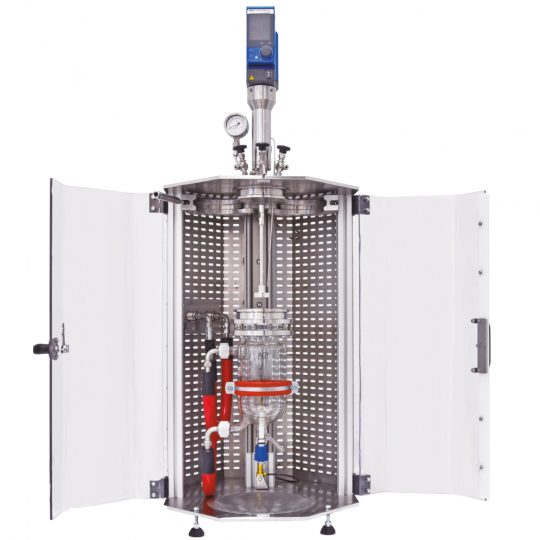

Optimum safety with protective cage and individual pressure testing

Glass Icon

All glass body that allows visual monitoring of processes

Wide process temperature range

Wide process temperature range;
-90 °C to +200 °C (300 °C as option)

Chemical Resistance Icon

Made of corrosion resistant materials (SS316 or Hastelloy® as option)


Reaction under 10 bar G Pressure

Inert gas reactions

Temperature control via thermal jacket

Pressure monitoring and relief
