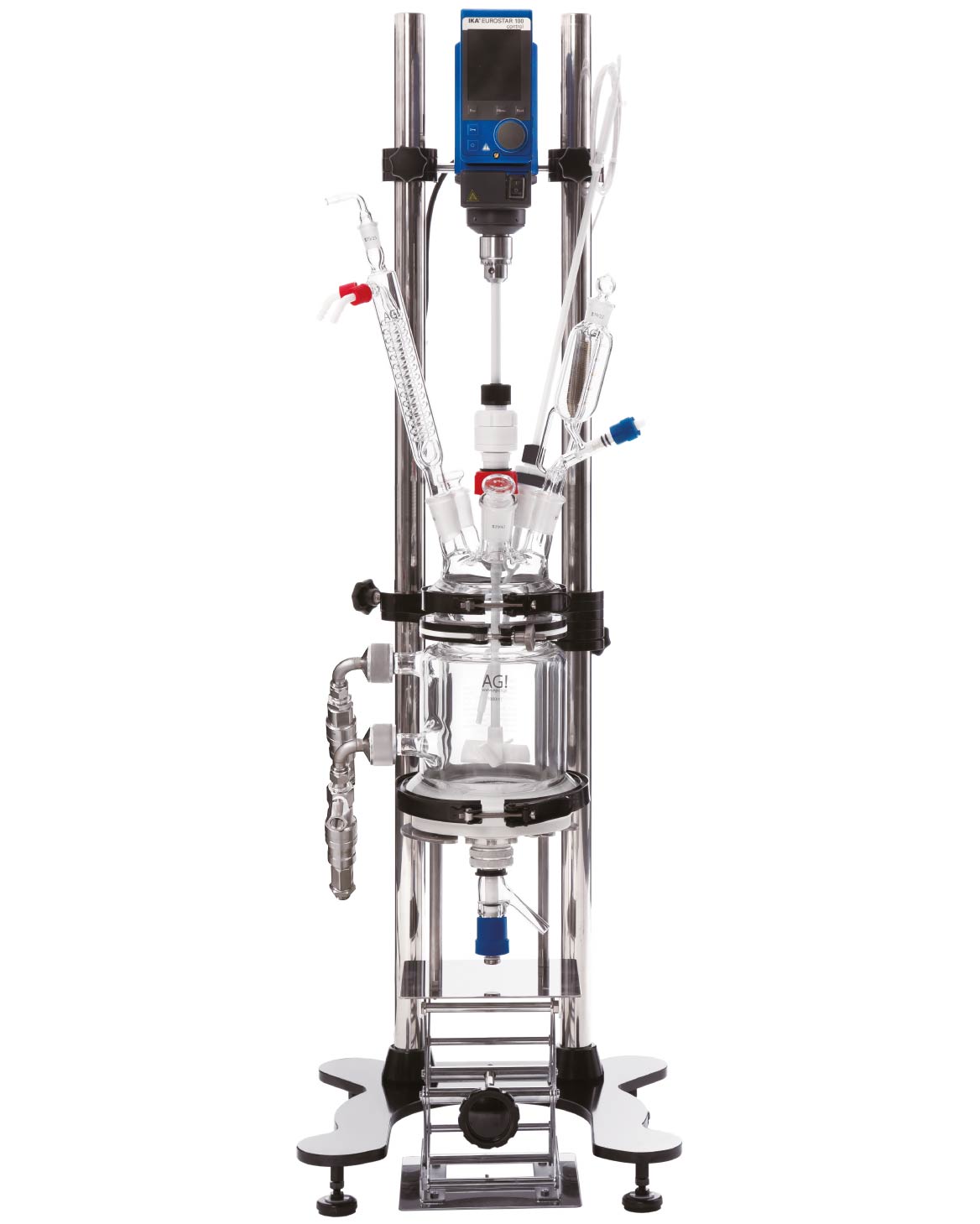

Filter Reactor (Benchtop)

실험용 필터 반응기

Best system for crystallization

AG!의 벤치탑 필터 반응기는, 반응기와 필터의 기능을 하나로 통합한 벤치탑 스케일 시스템으로 결정화 프로세스의 원활한 작업을 도와줍니다. 또한 필터 반응기는 결정 생성물과 후속 여과/세척 사이클의 합성을 수행하며 풀 자켓(full jacket) 디자인으로 뛰어난 열 전달과 함께 효과적인 반응 결과를 보여줍니다.

Reaction, Filtration and washing in one vessel

Contamination-free material processing

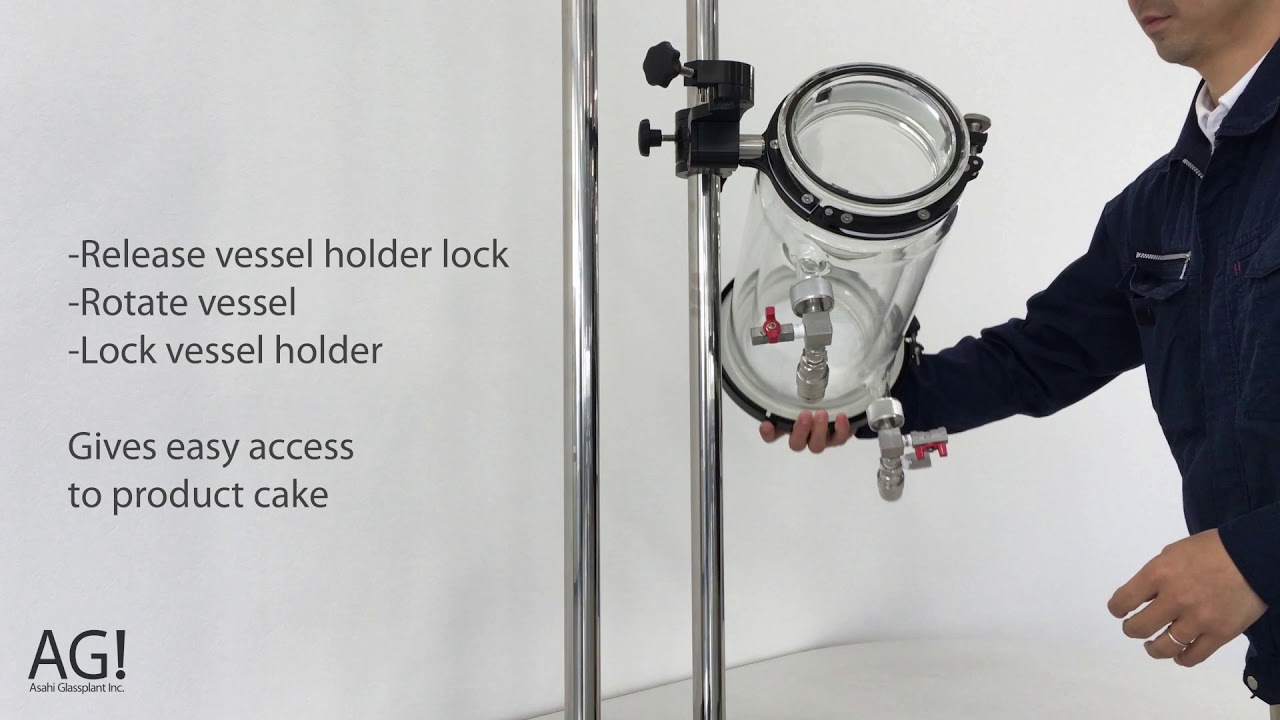

Vessel swing/rotating mechanism for easy product collection

The Benchtop Filter Reactor is a Blue Label Product >

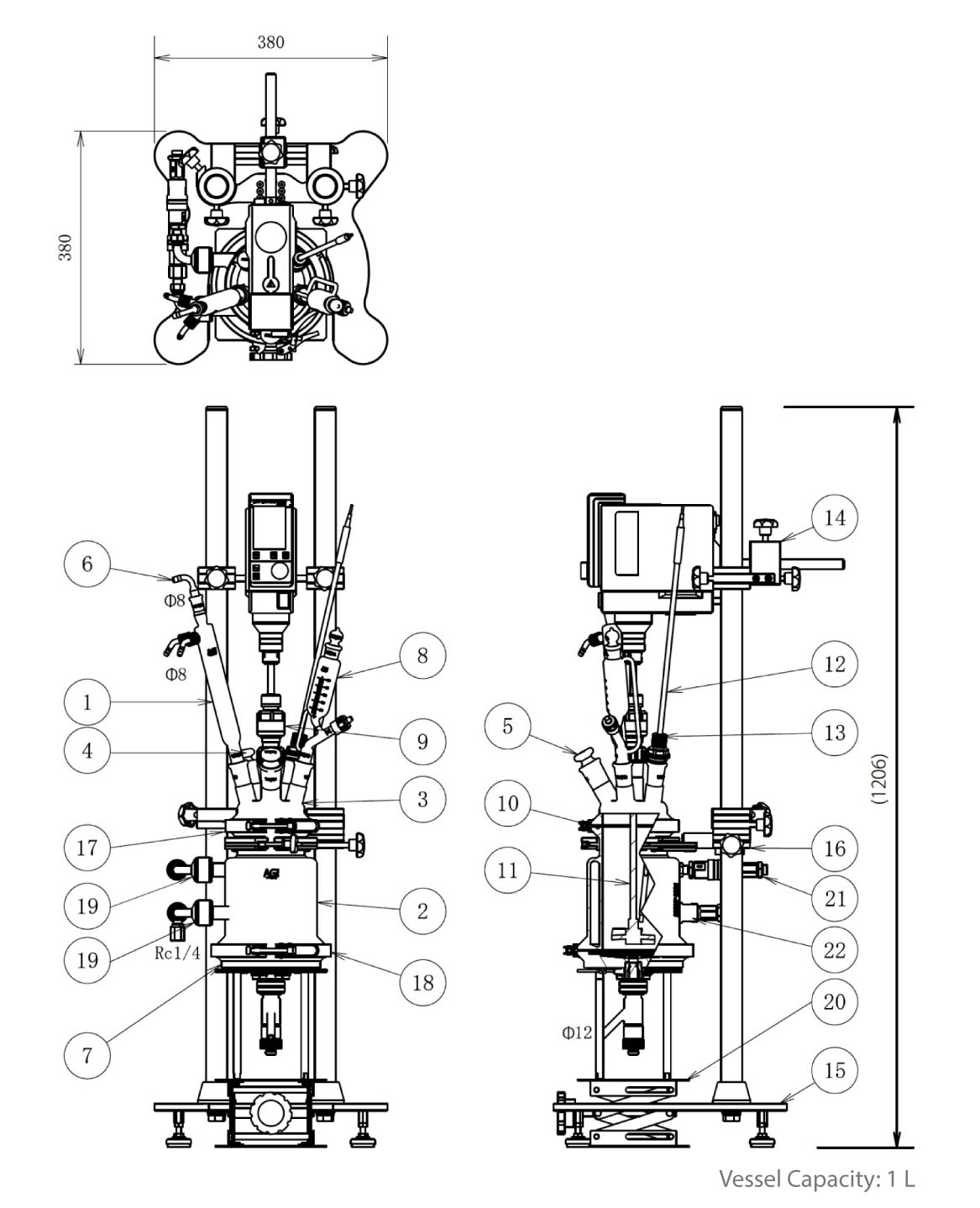

General specification

Vessel capacity

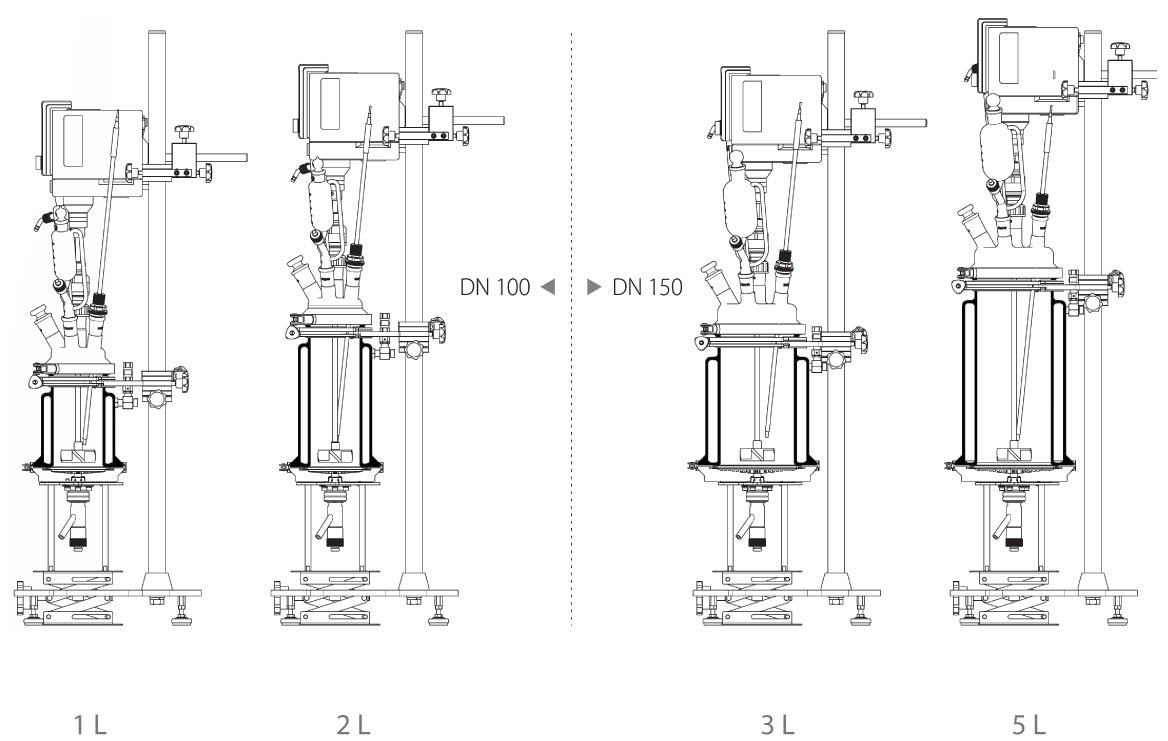

1 L, 2 L, 3 L and 5 L

Vessel type

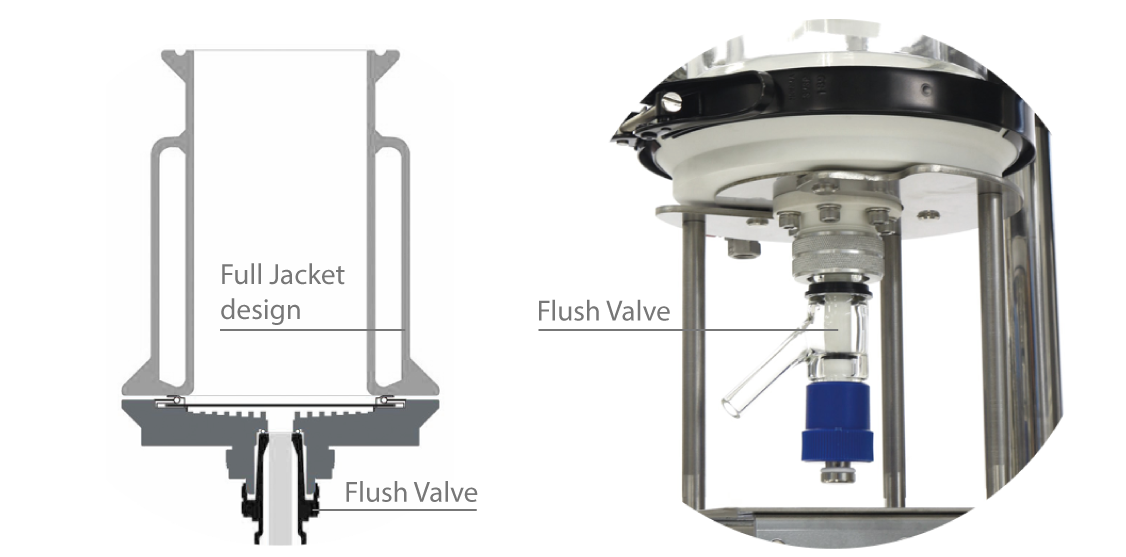

Double wall, full jacket (이중관 자켓 반응기)

Filtration area

78.5 cm² (1 L & 2 L)176.7 cm² (3 L &

Operating pressure

Full vacuum to atmospheric pressure

Operating jacket pressure

Up to +0.5 barG (0.05 MPa)

Operating temperature

-40 °C to +200 °C

ΔT - Thermal shock resistance

110 °C (double wall)

Note: Overhead stirrer, circulator and chiller are not included
Wetted parts: Borosilicate glass 3.3, PTFE, Viton, Perfluoro

Standard package

Dimroth Condenser, TS 24/40, TS 15/25
Full Jacket Glass Body, DN 100 (1 L, 2 L) / DN 150 (3 L, 5 L)
Glass Cover, DN 100 (1 L, 2 L) / DN 150 (3 L, 5 L)
Ports (SQG 29/42 x1, TS 24/40 x4, TS 29/42 x1)
Stopper for Additional Hole, TS 24/40
Stopper for Hand Hole, TS 29/42
Vent Adapter, TS 15/25

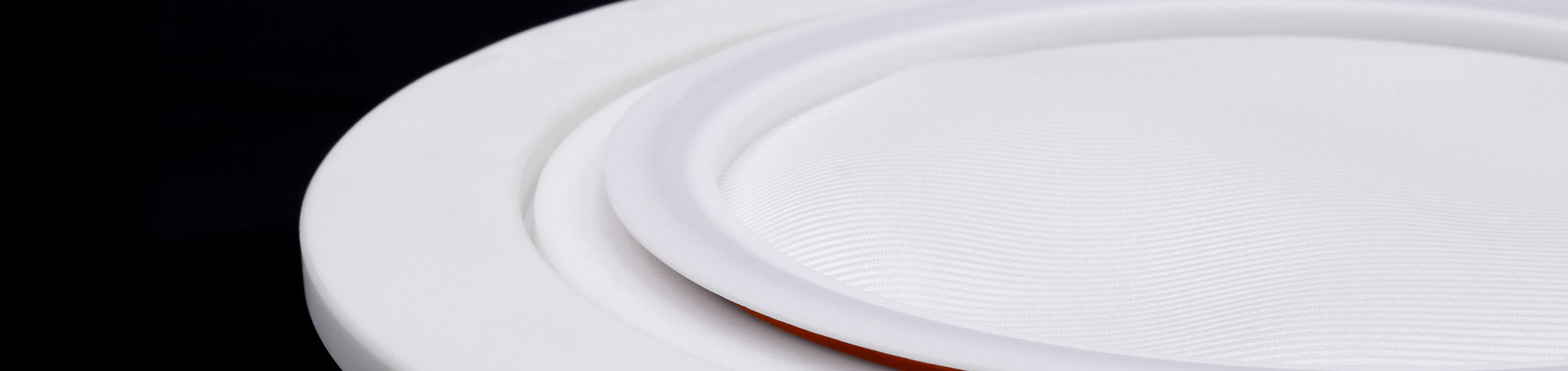

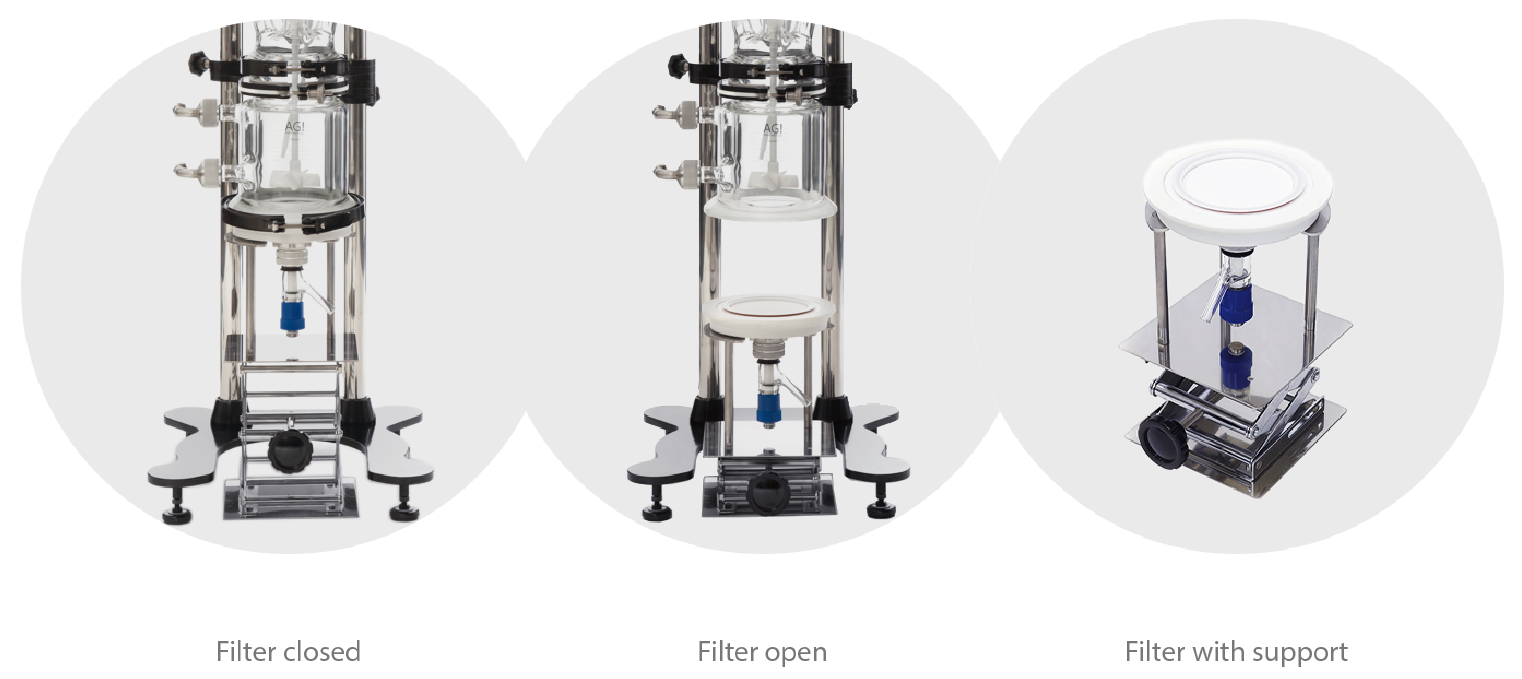

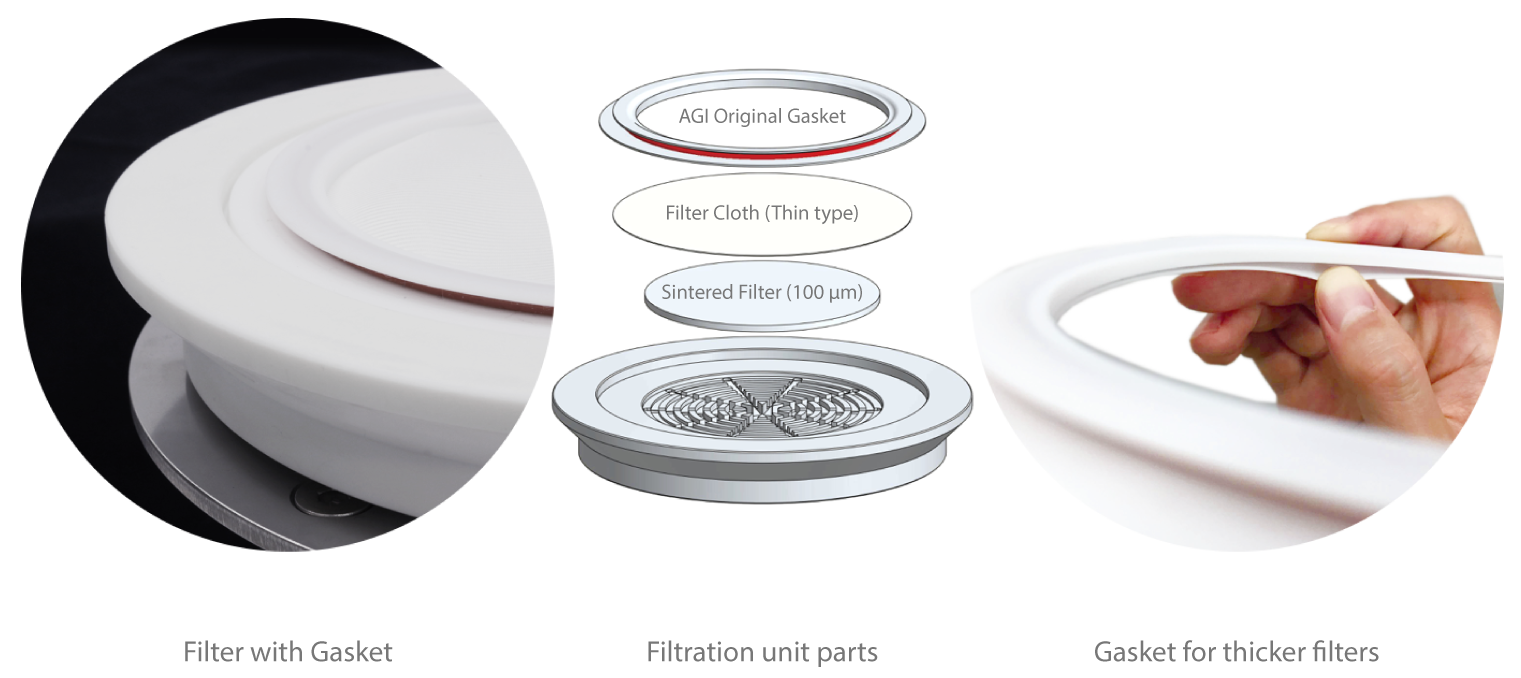

Filtration Part, PTFE, DN 150 (1 L, 2 L) / DN 200 (3 L, 5 L)
Dropping Funnel with Stopper, Graduated, TS 24/40
PTFE Stirrer Guide, Glass Ball Bearing, SQG 29/42,
Shaft OD: 10 mm
O-ring, FKM
PTFE Stirrer Shaft, Shaft OD: 10 mm
Temperature Sensor Probe, OD: 8 mm, L: 660 mm
Temperature Probe Holder, PTFE, TS 24/40, Probe OD: 8mm
Motor Support
Support Structure
Tilting Clamp
Quick Release Clamp, DN 100 (1 L, 2 L) / DN 150 (3 L, 5 L)
Quick release clamp for bottom, DN 150 (1 L, 2 L) / DN 200 (3 L , 5 L)
Metal Adapter for HTF, screw coupling, M16
Lab Jack
Coupler M16
Coupler M16 with safety valve

* All O-rings are consumable parts
**Overhead stirrer motor is not included

[AG!]

Filtration - Laboratory

Filter Reactor (Benchtop)

General specification

Why Should you choose AGI Benchtop Filter Reactor?

AGI Benchtop Filter Reactor is designed to accommodate reaction and filtration processes in one vessel. Most types of crystallisation processes can be performed in this system with a simplified work flow.
