Filtration - Pilot Plant

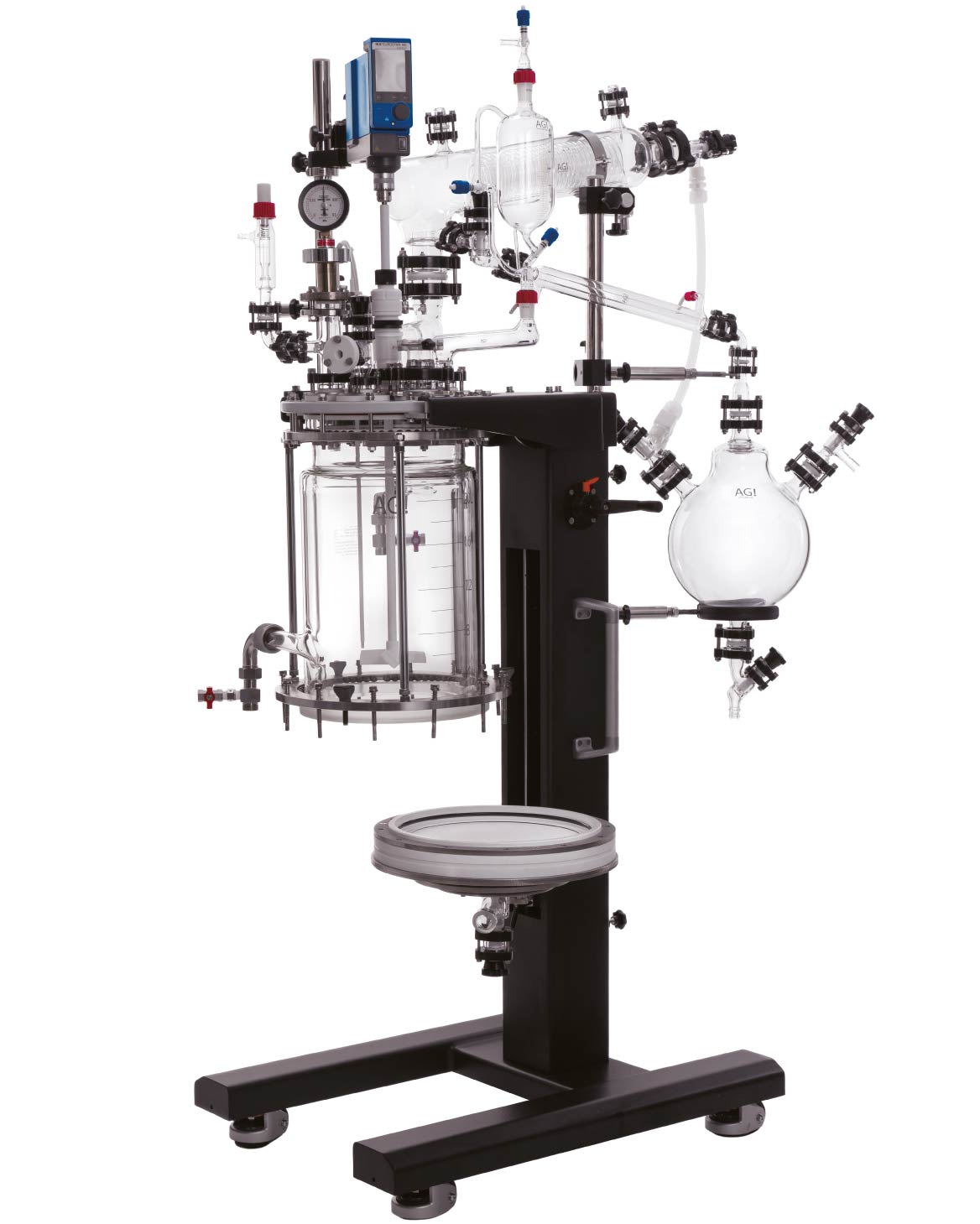

Filter Reactor (Pilot Plant)

파일럿 플랜트 필터 반응기


Ideal system for pilot scale crystallisation and filtration


AG!의 파일럿 플랜트 필터 반응기는 까다로운 결정화 프로세스를 충족하도록 설계되었습니다. 반응기와 필터의 기능을 하나의 시스템에 통합함으로써 용기를 열지 않고도 반응기에서 완전한 결정화 과정을 수행할 수 있습니다. 프로세스 범위는 결정 형성, 여과, 제품 세척 및 건조 등으로 다양합니다.


파일럿 필터 반응기에서는 많은 양의 결정 생성물을 쉽고 안전하게 처리할 수 있습니다. 또한 프로세스 개발, 킬로 랩(kilo lab) 및 파일럿 규모 생산에 이상적입니다.


Reaction, Filtration and washing in one vessel

Contamination-free material processing

Vessel swing/rotating mechanism for easy product collection



The Pilot Plant Filter Reactor is a Blue Label Product >

General specifications

Vessel capacity
10 L, 20 L and 30 L
Vessel typeDouble wall, full jacket
Filtration area317.3 cm² (10 L), 514.7 cm² (20 L), 711.6 cm² (30 L)
Operating pressureFull vacuum to atmospheric pressure
Operating jacket pressureUp to +0.5 barG (0.05 MPa)
Operating temperature-90 °C to +200 °C
ΔT - Thermal shock resistance110 °C (double wall)



Note:

이 장비는 overhead stirrer, circulator and chiller 불포함.

고객 맞춤 시스템 제작 가능.






Why Should you choose AGI Pilot Plant Filter Reactor?

AGI Pilot Plant Filter reactor is designed to accommodate reaction and filtration processes in one vessel. Most types of crystallisation process can be performed in this system with a simplified work flow.



Reaction & Filtration Icon

Reaction and Filtration in
a single vessel

Easy Access Icon

Easy access to filter
using a lever mechanism

Product Quality Icon

Design that safeguards against
product loss

Removable drain valve for easy cleaning

Easy cleaning and maintenance

Vessel Scale-up Icon

Scale-up up to 100 L

Reduce Costs Space and Time Icon
Space, time and cost saving
Wide process temperature range

Wide process temperature range;
-90 ℃ to +200 ℃

Easy movability

Support structure with
castors for mobility

Full Jacketed Vessel Icon
Vessel with full jacket design for
maximised thermal transfer efficiency




Functionality


Reaction–vacuum to atmospheric pressure

Temperature regulation

In-stand distillate cooling and collection

Filtration - vacuum or gravity assisted

Distillation

Agitation

Temperature monitoring

Insert atmospheric processes

Reflux condensation

Pressure monitoring and relief

Dosing of solids and liquids

Additional functionality -

based on request

Features

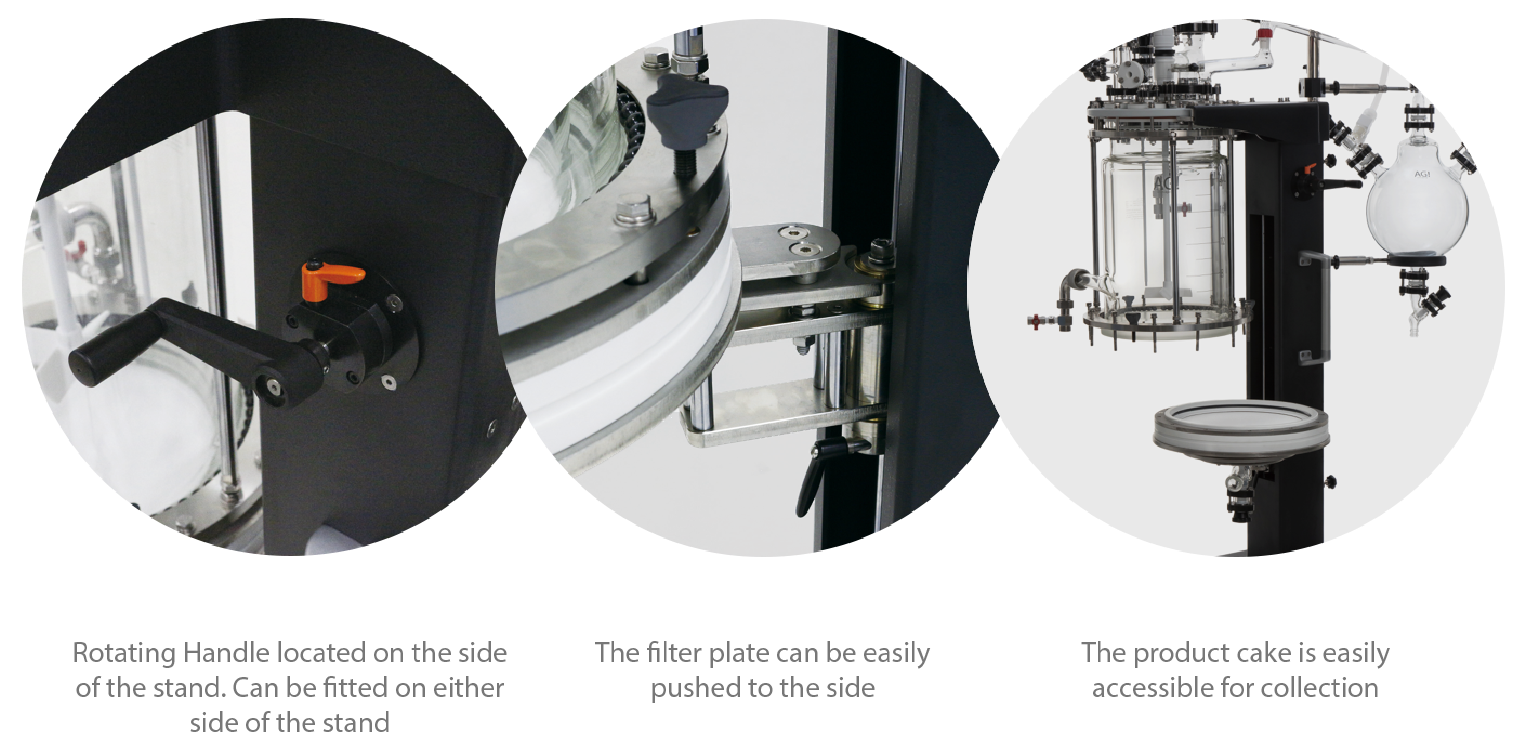

Recover end product with absolute ease

결과물 취급을 위한 안전하고 안정적인 시스템





AG!의 필터 서포트 구조를 설계하여 다른 시스템에 비해 귀사의 소중한 반응 여과물을 쉽고 간편하게 취급할 수 있습니다. 필터는 여과물을 수거를 위해 신속하게 분리, 하강 및 사이드로 이동할 수 있도록 원활하고 안전하고 통제된 방식으로 이루어져 있습니다. 필터의 하강은 지지 구조의 회전 레버 메커니즘에 의해 보조됩니다.

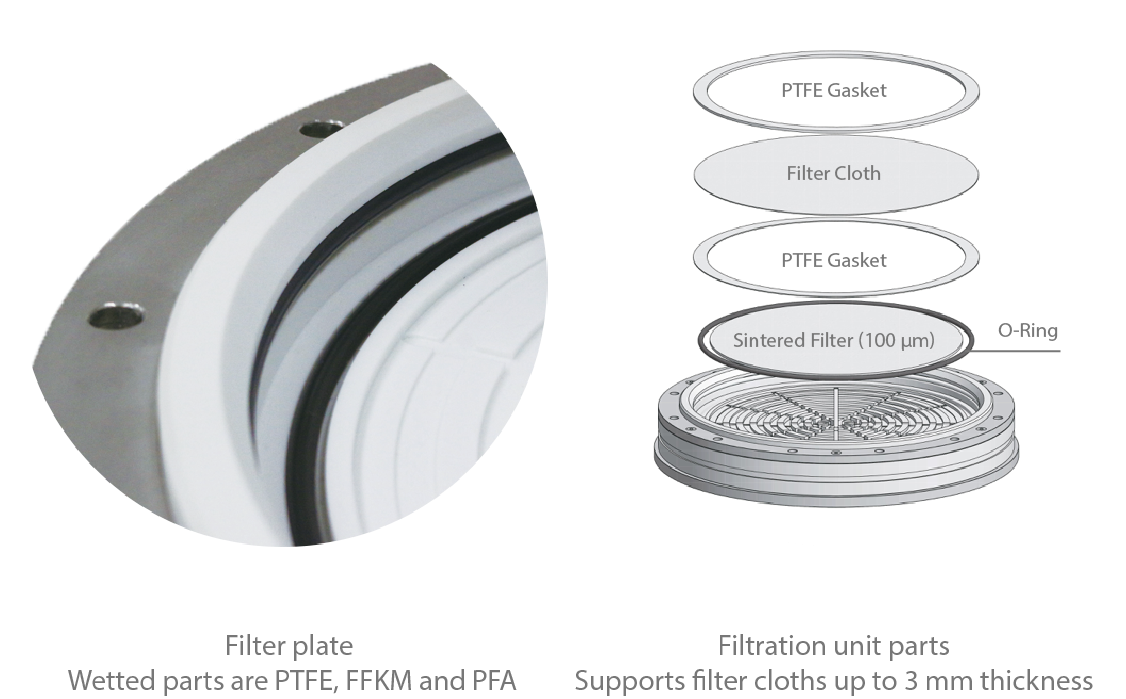

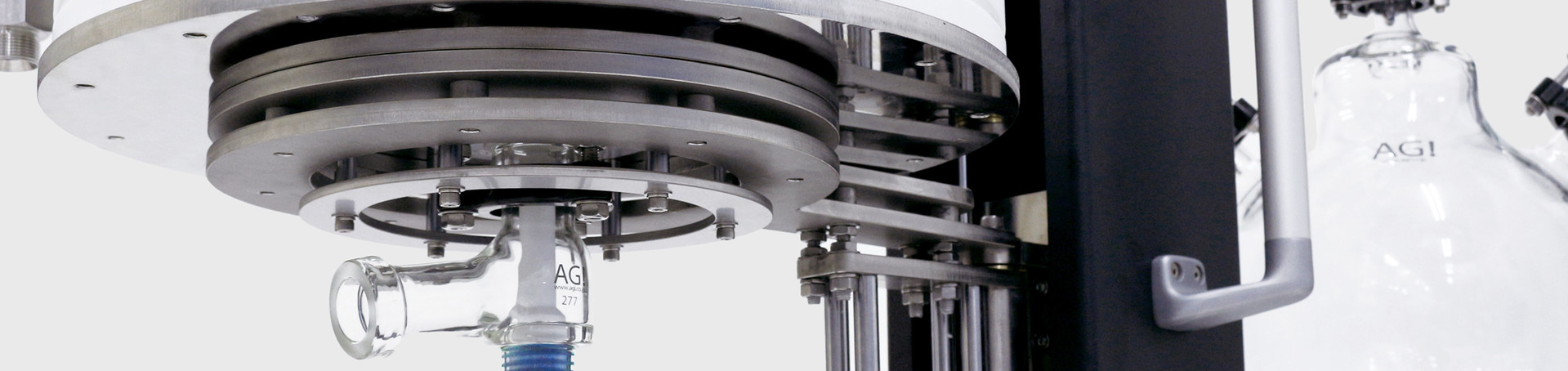

Effective Filtration




필터 부분은 여과물의 유출이나 우회 등을 방지하기 위해 꼼꼼하게 설계되었습니다. 소결 필터(pore size of about 100 μm)는 필터 막을 지지합니다. 필터 천을 고정하는 이중 PTFE 개스킷은 모든 레이어를 제자리에 고정하도록 돕습니다. 이 설정은 O-링과 함께 누출(고체, 액체 및 가스 포함)을 방지하고 필터가 닫힐 때 우회합니다. 최대 3mm 두께의 필터 막을 사용할 수 있습니다.

Note: 필터 막의 공극 크기는 가변적이기 때문에 표준 패키지에 포함되지 않습니다.

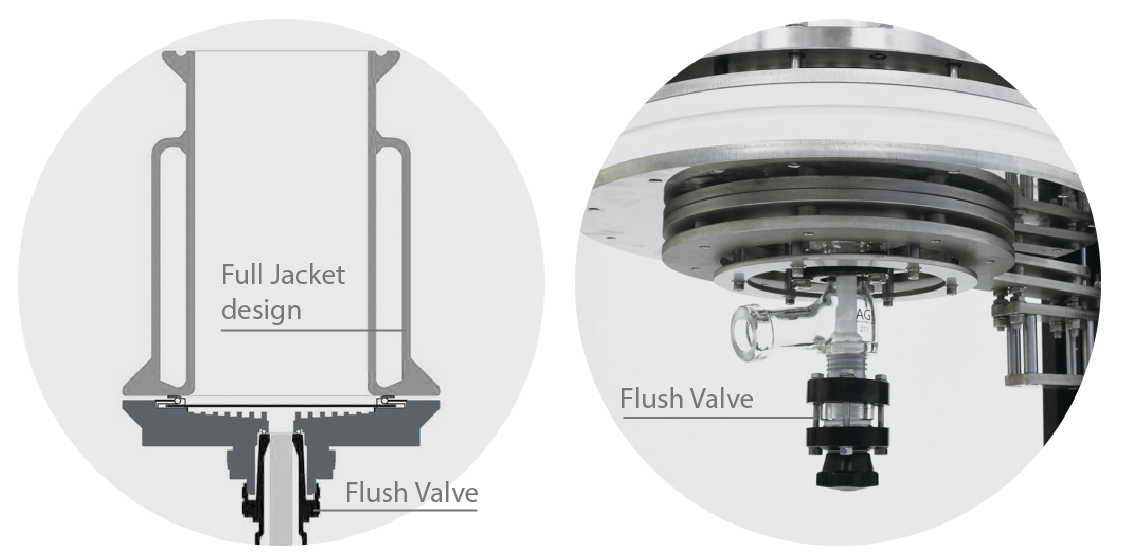

Full jacket design for high thermal performance


High performing vessel

 Filter with low dead volume





풀 자켓(full jacket) 디자인은 열 재킷이 프로세스 용기를 완전히 덮어서 프로세스 용기로 열 전달을 극대화한다는 것을 의미합니다. 필터와 플러시(flush) 밸브는 사강(dead space)을 최소화하도록 설계되었습니다.

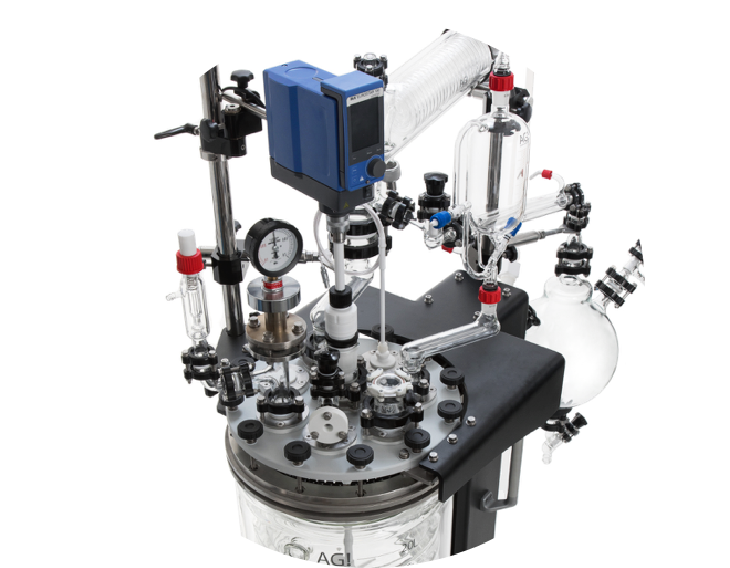

Optimize your process with accessories


AG! 파일럿 플랜트 필터 반응기는 킬로 랩/파일럿 플랜트 제작 및 프로세스 개발 애플리케이션에 가장 적합합니다. PFA 코팅 SS 리드(Lid)에는 퍼지 포트(purgge port), 압력 게이지, 핸드 홀(hand hole), 안전 밸브, 콘덴서, 드롭 깔때기(dropping funnel), 응축수 쿨러(condensate cooler), 응축수 리시버(condensate receiver), 스터러 씰(stirrer seal) 및 온도 센서와 같은 악세사리가 있는 다목적 40A 포트가 있습니다. 이러한 부속품은 결정화를 미세 조정하고 최적의 공정을 만드는 데 도움이 됩니다.

Note: 10L 모델에는 수직 콘덴서가 있고 20L, 30L 모델에는 사선 콘덴서가 있습니다.


Numerous accessories provide safety, facilitate monitoring and control of process.

All ports are multi-purpose 40 A

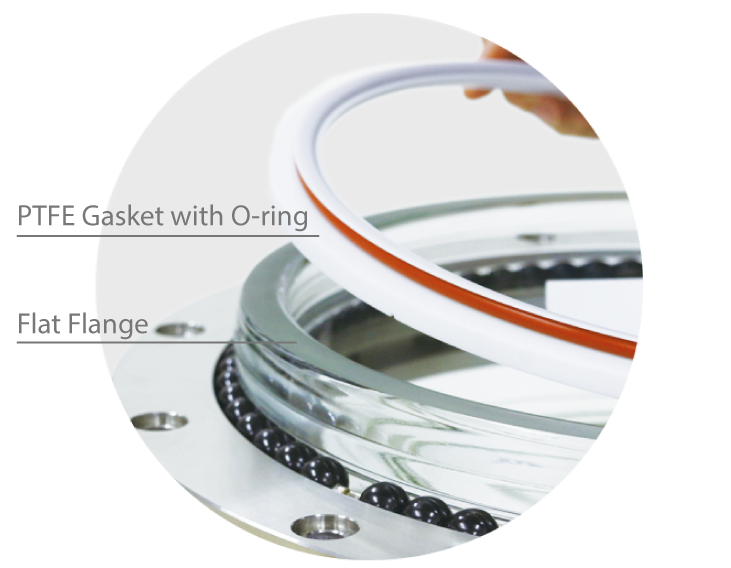

Clean with ease



Unlike the flanges with grooves, flat flanges are very easy to clean and maintain

중형 사이즈 필터 반응기의 경우 배치 간 화학적 오염을 방지하게 위해 사용 후 철저한 세척은 필수입니다. 특히 플랜지(flange)와 여과 부품을 청소하는 것이 중요합니다.


O-링이 표준 용기에 들어 있는 플랜지 홈은 각 프로세스 후에 화학 잔류물을 수집하기 쉽습니다. AG!의 필터 반응 용기는 플랜지가 평평하여 청소가 매우 용이합니다.


여과부에서는 개스킷(gasket), O-링, 소결 필터(sintered filter)가 탈착이 가능합니다. PTFE 필터 베이스에는 세척을 위해 쉽게 접근할 수 있도록 날카롭고 정의된 그로브(groves)가 있습니다.

플러시 밸브는 탈부착이 가능하며 모든 것이 완전히 배수되는 런오프(run-off) 설계를 갖췄습니다. 이러한 설계 기능은 배치별로 반응기를 청소하고 작업하는 방식을 개선합니다.

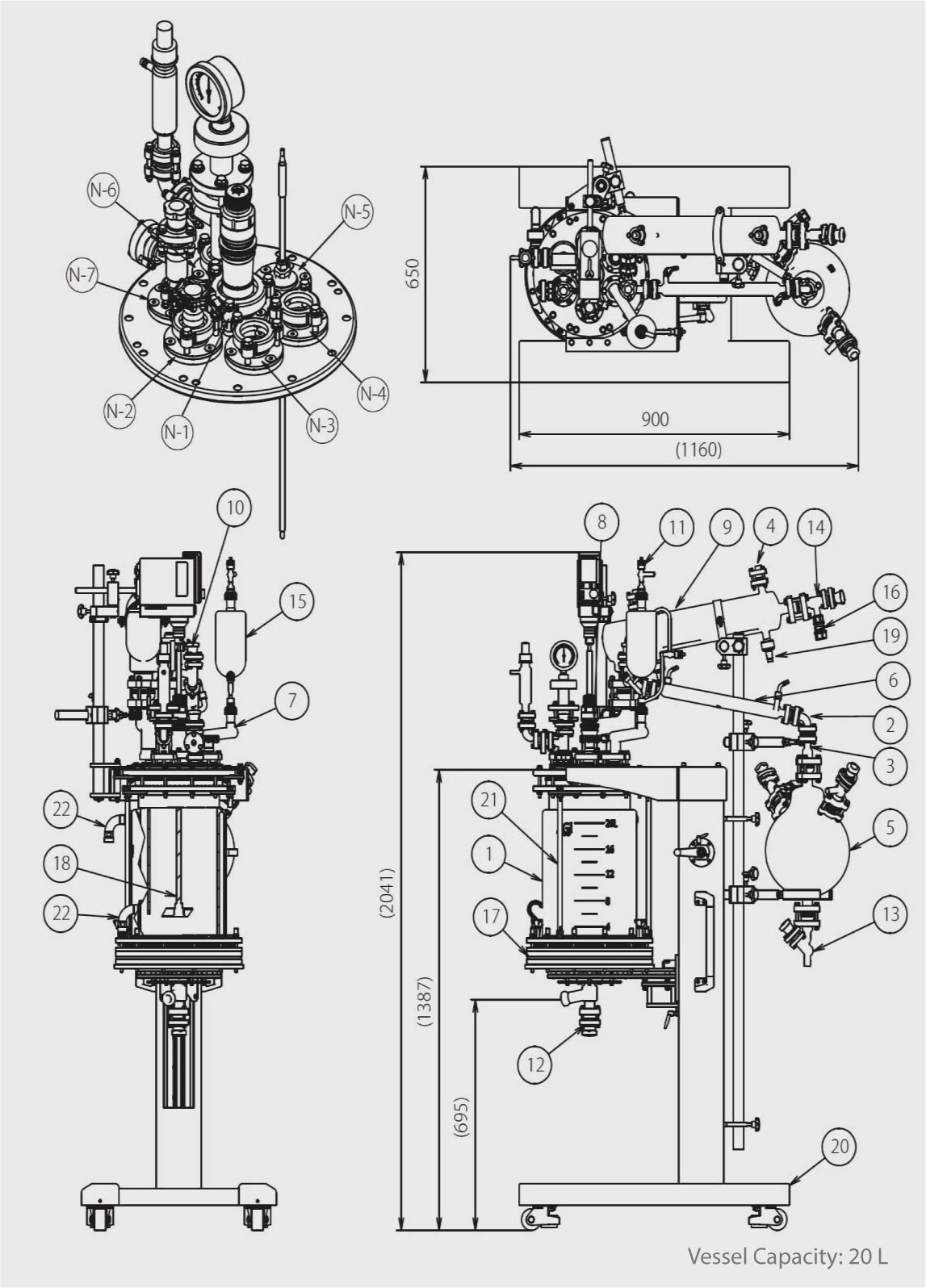

Standard package


  1. Full Jacket Glass Body,
    DN 200 (10 L) / DN 250 (20 L) / DN 300 (30 L)
  2. Bend Adapter (80°)
  3. Reducer
  4. Thermometer Pocket
  5. Receiver
  6. Product Cooler
  7. Adapter (SQG 24/40)
  8. Adapter (40 A, 50 A)
  9. Condenser with Reflux Divider
  10. Straight Valve, L Type
  11. Greaseless Valve (SQG 24/40)
  12. Flush Valve
  13. Drain Valve (PVD 25, ф20)
  14. Vacuum Vent Valve (PVH 25, ф19)
  15. Dropping Funnel
  16. Fitting
  17. Filtration Part, PTFE,
    DN 250 (10 L) / DN 300 (20 L) / DN 350 (30 L)
  18. PTFE Stirrer Shaft, Shaft OD: 16 mm
  19. Adapter for HTF, 15 A
  20. Support Structure
  21. Original Flange Set
  22. Metal Adapter for HTF, Screw Coupling, M30
    N-1 Port for PTFE Stirrer Guide
    N-2 Hand Hole
    N-3 Port for Dropping Funnel
    N-4 Port for Condenser
    N-5 Pt100 Sensor with Holder
    N-6 Compound Pressure Gauge, Safety Valve
    N-7 Purge Port (Rc 3/8)

* Ports on Cover Plate: 7 Ports (10 L, 20 L), 8 Ports (30 L)
* 8 Ports include a Spare Port
* All O-rings are consumable parts
* Overhead stirrer motor is not included

Customization

Possibilities

파일럿 플랜터 필터 반응기는 커스터마이징이 가능합니다. 귀사의 특정 어플리케이션 요구 사항을 충족시키기 위해 맞춤형 기능의 설계를 위한 상담을 받아보세요. AG! 독점 대리점인 (주)케미스카이의 전문가가 도와드립니다. 맞춤형 제작의 예로는 뚜껑 악세사리, 용기 사이즈, 더 깊은 필터 베이스 제작 등이 있습니다.
